Bridon®
8 Series
Bridon 8 series is a range of general purpose 6 stranded galvanised & bright steel wire ropes produced with a steel core, fully lubricated during manufacture producing in accordance with EN 12385.
Applications
- Construction Cranes
- Port Cranes
- Industrial Cranes
- Offshore Cranes
- Winches
- Drilling rigs
Benefits
- Improved bending fatigue performance
- Better retention of internal lubrication
Features
Bridon® 8 Series specification
| Diameter | Nominal length mass | Minimum breaking force | |||||||
|---|---|---|---|---|---|---|---|---|---|
| EIPS / 1960 | EEIPS / 2160 | ||||||||
| mm | inch | kg/m | lbs/ft | kN | Tonnes | Tons | kN | Tonnes | Tons |
| 12.0 | - | 0.58 | 0.39 | 100 | 10.2 | 11.2 | 111 | 11.3 | 12.5 |
| - | 1/2 | 0.65 | 0.44 | 113 | 11.5 | 12.7 | 124 | 12.6 | 13.9 |
| 13.0 | - | 0.68 | 0.46 | 118 | 12.0 | 13.3 | 130 | 13.3 | 14.6 |
| 14.0 | - | 0.79 | 0.53 | 137 | 14.0 | 15.4 | 151 | 15.4 | 17.0 |
| - | - | 0.83 | 0.55 | 142 | 14.5 | 16.0 | 157 | 16.0 | 17.6 |
| - | 5/8 | 1.03 | 0.68 | 179 | 18.3 | 20.1 | 197 | 20.1 | 22.1 |
| 16.0 | - | 1.04 | 0.70 | 179 | 18.3 | 20.1 | 197 | 20.1 | 22.1 |
| 18.0 | - | 1.32 | 0.88 | 226 | 23.0 | 25.4 | 249 | 25.4 | 28.0 |
| 19.0 | - | 1.47 | 0.98 | 252 | 25.7 | 28.3 | 278 | 28.3 | 31.2 |
| - | 3/4 | 1.48 | 0.99 | 252 | 25.7 | 28.3 | 278 | 28.3 | 31.2 |
| 20.0 | - | 1.63 | 1.09 | 279 | 28.4 | 31.4 | 308 | 31.4 | 34.6 |
| 22.0 | - | 1.97 | 1.32 | 338 | 34.5 | 38.0 | 372 | 37.9 | 41.8 |
| - | 7/8 | 2.01 | 1.35 | 338 | 34.5 | 38.0 | 372 | 37.9 | 41.8 |
| 24.0 | - | 2.34 | 1.58 | 402 | 41.0 | 45.2 | 443 | 45.2 | 49.8 |
| - | 1 | 2.63 | 1.76 | 450 | 45.9 | 50.6 | 496 | 50.6 | 55.8 |
| 26.0 | - | 2.75 | 1.85 | 472 | 48.1 | 53.1 | 520 | 53.0 | 58.5 |
| 28.0 | - | 3.19 | 2.14 | 547 | 55.8 | 61.5 | 603 | 61.5 | 67.8 |
| - | 1 1/8 | 3.32 | 2.23 | 570 | 58.1 | 64.1 | 628 | 64.0 | 70.6 |
| 30.0 | - | 3.66 | 2.46 | 628 | 64.0 | 70.6 | 692 | 70.6 | 77.8 |
| - | 1 1/4 | 4.10 | 2.76 | 715 | 72.9 | 80.4 | 787 | 80.3 | 88.5 |
| 32.0 | - | 4.17 | 2.80 | 715 | 72.9 | 80.4 | 787 | 80.3 | 88.5 |
| 34.0 | - | 4.70 | 3.16 | 807 | 82.3 | 90.7 | 889 | 90.7 | 100 |
| - | 1 3/8 | 4.96 | 3.34 | 851 | 86.8 | 95.7 | 938 | 95.6 | 105 |
| 36.0 | - | 5.27 | 3.54 | 904 | 92.2 | 102 | 997 | 102 | 112 |
| 38.0 | - | 5.88 | 3.95 | 1010 | 103 | 114 | 1110 | 113 | 125 |
| - | 1 1/2 | 5.91 | 3.97 | 1010 | 103 | 114 | 1110 | 113 | 125 |
This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
More six strand ropes

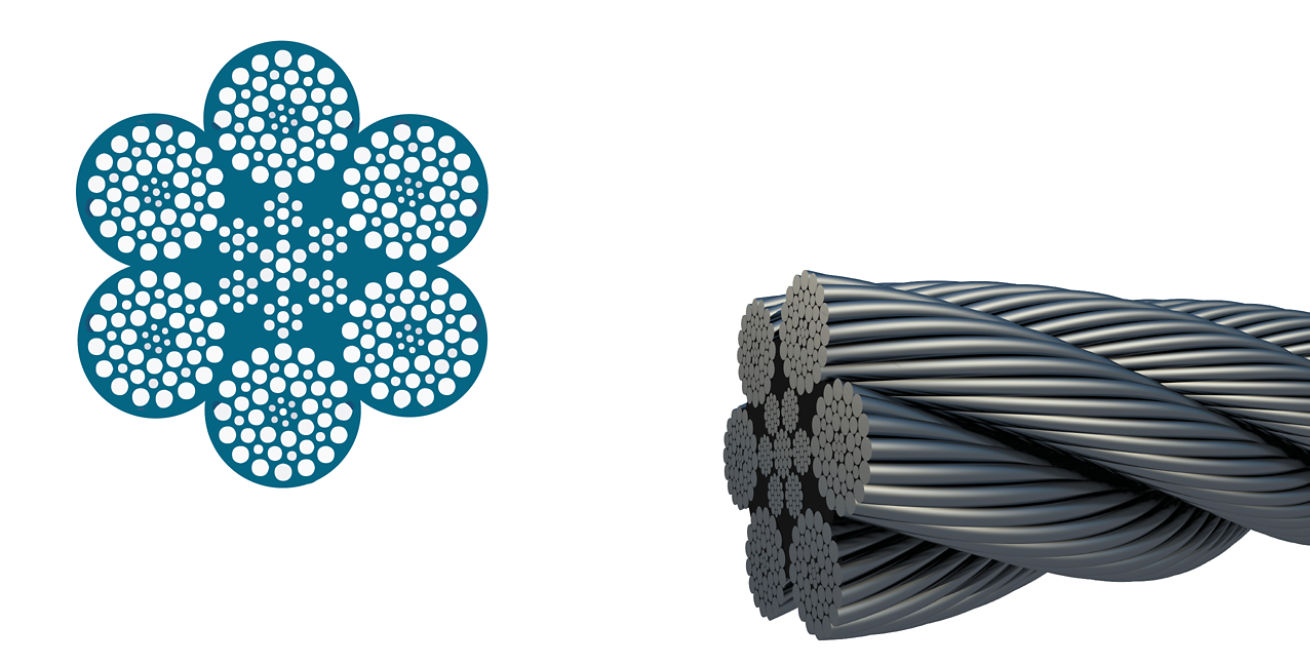

Bridon Diamond Blue®
Bridon Diamond Blue®
Bridon Diamond Blue® is a 6 strand galvanized conventional rope produced with a steel core fully lubricated during the production process.

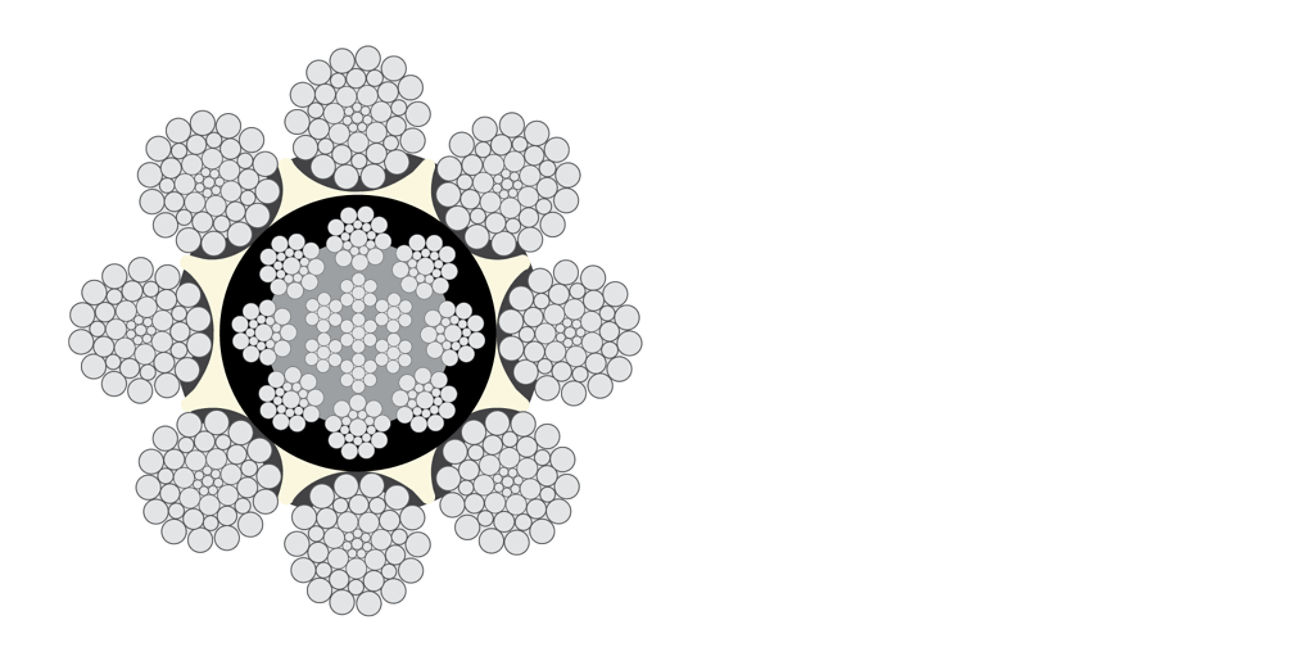

WRI® Ultra
WRI® Ultra
WRI® brand rope without a plastic coating, Ultra is available in 6-strand design for drag position and 8-strand configuration for hoist position.

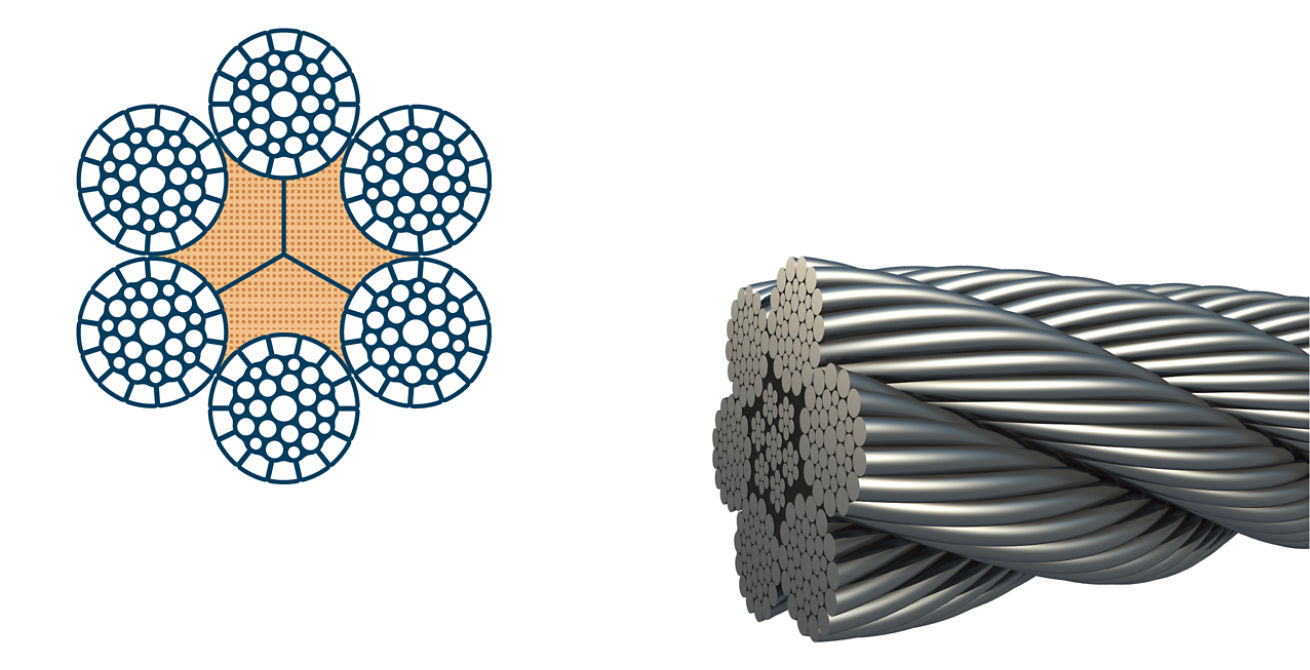

Bridon Tiger Dyform® 6R
Bridon Tiger Dyform® 6R
The Bridon Tiger Dyform® 6R is a high strength 6 strand rope on friction winders with reliable performance.

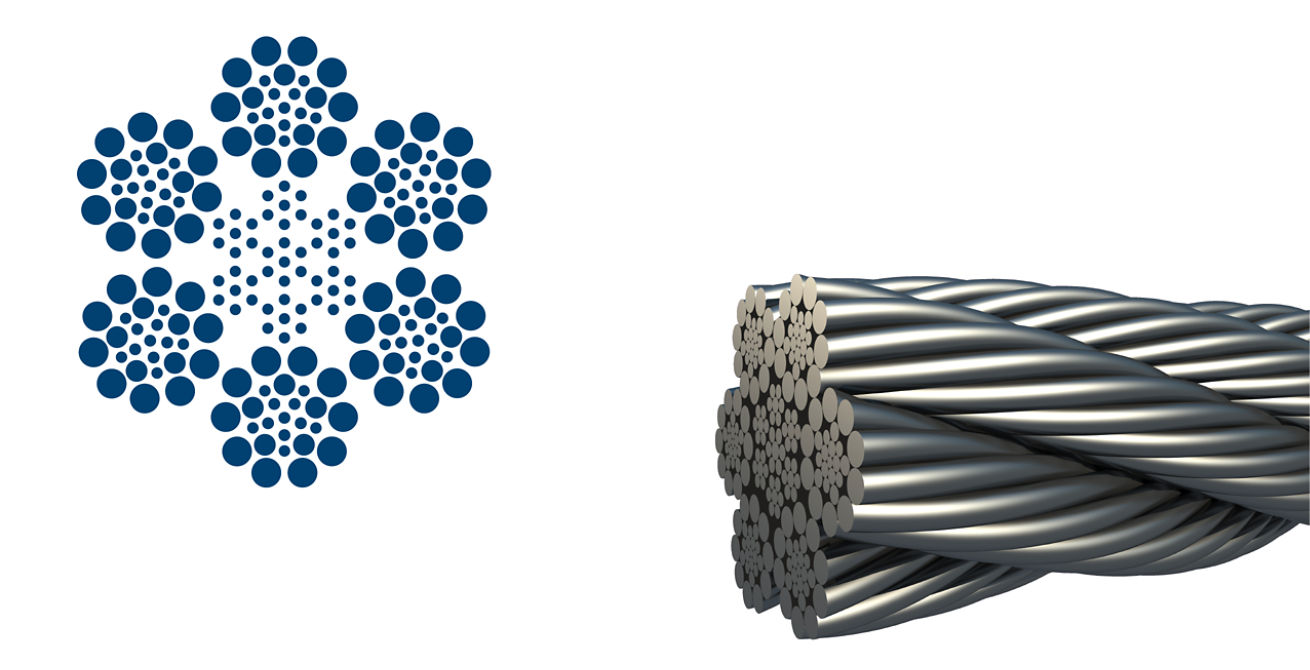

Bridon® Tubing Line
Bridon® Tubing Line
Bridon® Tubing Line is a small-diameter pipe that is run into a well to serve as a conduit for the passage of oil and gas to the surface.

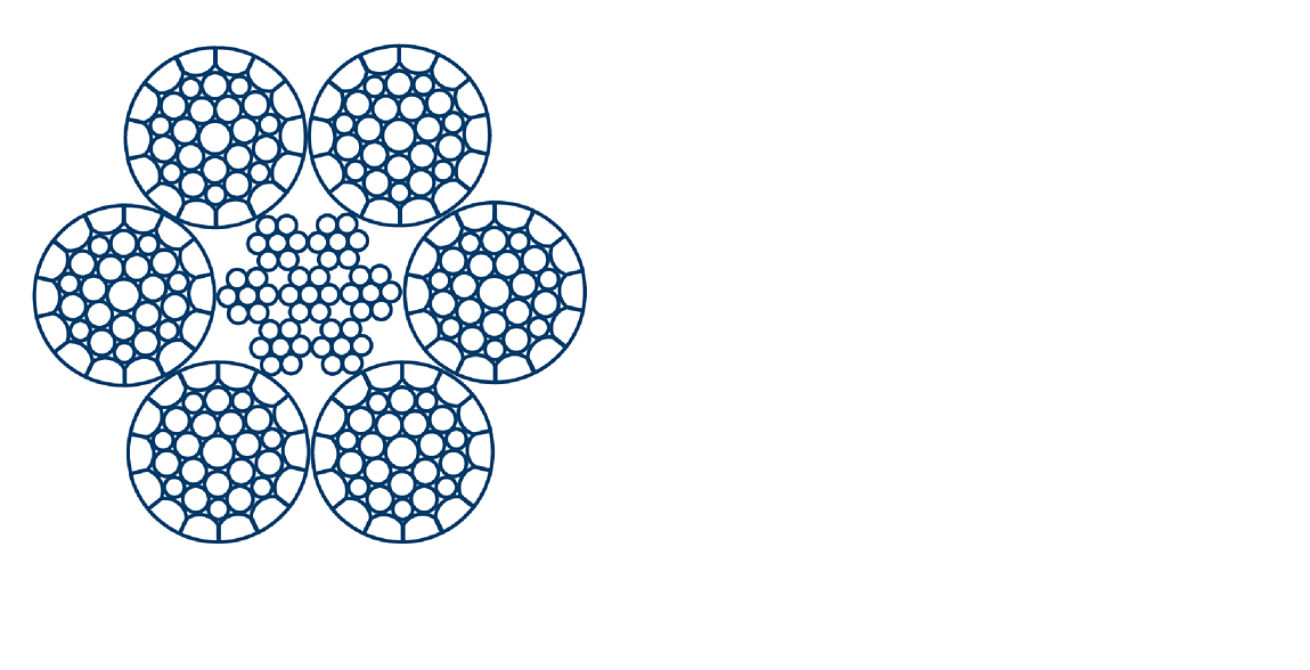

WRI® DyPac 6
WRI® DyPac 6
WRI® DyPac 6 is a high performance compacted single layer rope construction for various cranes and industrial applications.

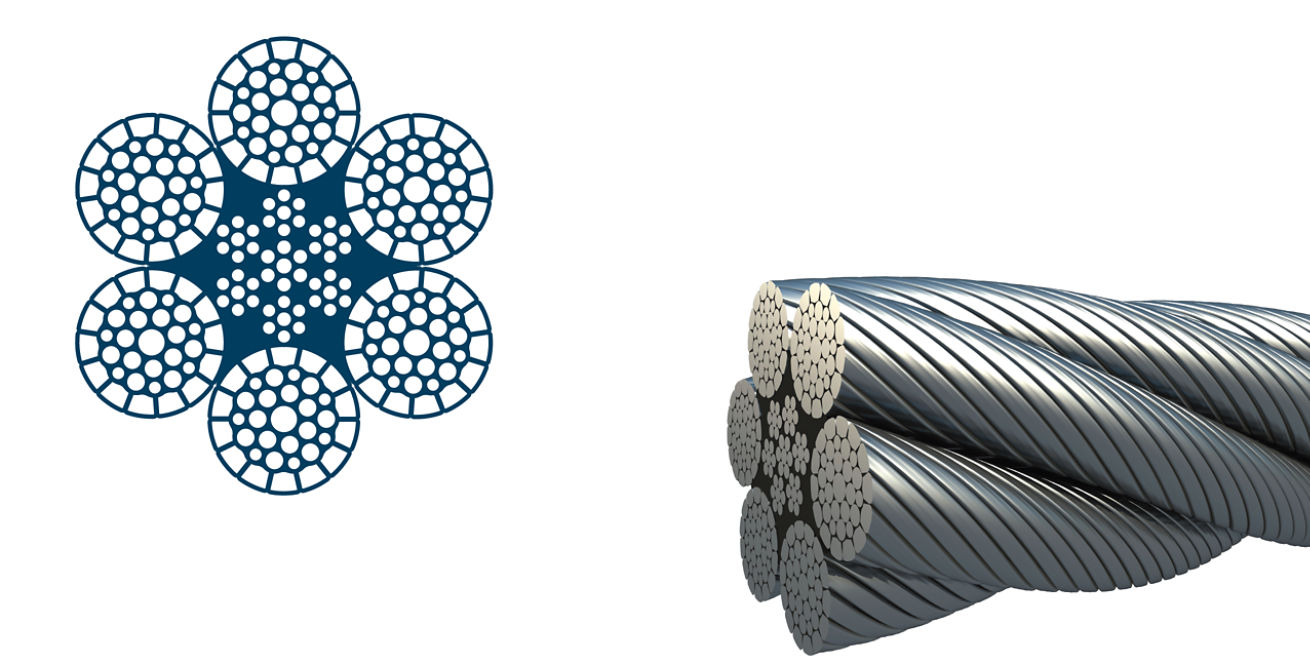

Bridon Tiger® BiG T6 Compacted
